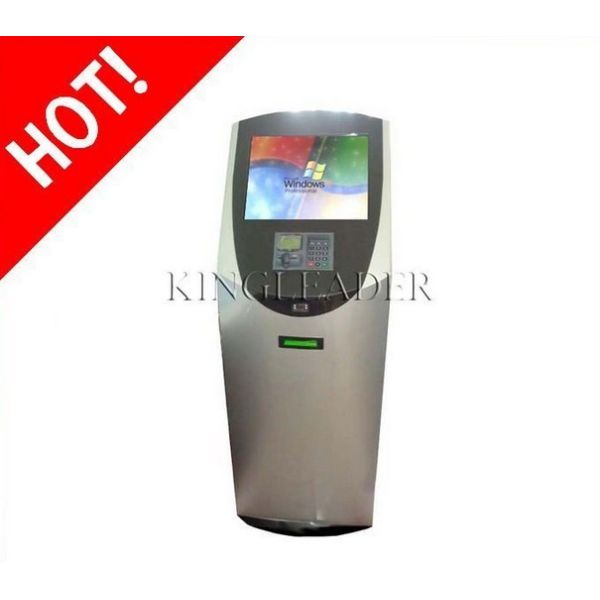

19" Slim Touchscreen Ticket Vending Kiosk , Payment Ticketing Kiosks TSK8006
1, Payment kiosk with paystation, barcode scanner and printer
2, 17"/19" SAW touchscreen
3, CE&FCC compliance
4, OEM&ODM available
This payment ticketing kiosk is modified based on our standard model TSK8006 by adding a paystation, a barcode scanner and a 80mm thermal printer
Key Features:
- High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen
- 17″, 19″TFT LCD displays for option
- Durable steel enclosure, sleek, extra slim, stylish and ADA compliant design
- Built-in hi-fi amplified speakers
- Customizable
Application:
This payment ticketing kiosk is commonly used in public places or facilities where people can get a ticket by making payment through bank card
|
Technical Specifications
|
|
TFT LCD Display
- Resolution: 1280x1024(17″and 19″)
- Brightness: 250~300 nits
- Contrast ratio: 450:1
- Response time:8 ms
|
Touch Screen
- Vandal-proof SAW touch screen
- Material: Heat tempered glass
- Resolution: 4096*4096
- Deviation of error: <2mm
- Light Transmittance: ≥ 92%
- Surface Hardness: 7 Mohs scale
- Lifetime:50, 000, 000 times at one single location
- Response time: less than 16 ms
- Touch activation force: 10~100g
|
Enclosure
- Durable steel enclosure (different colors for option)
- Built-in power control panel, and hi-fi speakers.
- Two cooling fans for computer board and main body separately
- RJ45/RJ11 interface
- Large access doors with tubular locks/keys
|
|
Mother Board
- CPU: Intel Pentium dual core E5300 (upgradeable on request)
- RAM: 1GB (upgradeable on request)
- Hard Disc: 250GB (upgradeable on request)
|
Operation System
LINUX/Win3.X/98/2000/NT4.0/XP/Win7
|
Working Voltage
AC 220V, 50 Hz or 110V, 60 Hz for option
|
|
Ambient Environment
- WorkingTemperature:-20°C~65°C;
-RelativeHumidity: 30%~90%
- Storage Temperature: -40°C~80°C;
-Relative Humidity: 5%~95%
|
Dimensions
- 138(height) x 52(width) x 40(depth) CMs
- Packing dimension: 150 x 60 x 46cm
|
Peripherals
Paystation, barcode scanner and 80mm thermal printer
|
